Communications unlock the full potential of the EDXtreme
One of the foremost reasons for choosing an electronic dynamometer is added functionality. The radio or hardwired options available with the EDXtreme offer the convenience and safety of remote operation. Additionally, data from the dynamometer(s) can be downloaded to a PC via an RS-232 connection for compilation and analysis or to generate hard-copy printouts.
Remote control and radio communications are not new to the Dillon product line. In fact, it is the depth of Dillons experience in this area that led to meaningful innovations in the design of the EDXtreme and its optional remote Communicator.
Improved radio performance
Unlike the many products on the market today, the EDXtreme radio dynamometer utilizes leading-edge 2.4Ghz radio frequency technology to eliminate common interference issues. This spread spectrum technology will establish and maintain the strongest, most reliable communications.
Dynamic monitoring and control

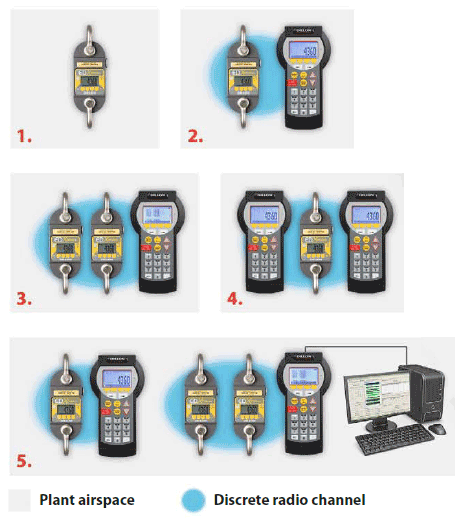

The optional Communicator is an extremely powerful hand-held remote that can define the function and manage the operation of one or more EDXtreme dynamometers using wired or radio technologies. Through the programmable SOFTKEY interface, one or more Communicators can monitor multiple dynamometers within the same airspace. In multiple-link lifting arrays, the Communicator can display
|Enclosure||Designed to NEMA 3 / IP44 with optional sleeve. Suitable for protected outdoor use|
|Dimensions||9.5 x 5.0 x 2.5 inch (241 x 127 x 64mm).|
|Accuracy||Not applicable. Only sends and receives digital information|
|Display||128 x 64 dot-graphic LCD display can show full readings up to 5 instruments|
|Battery Life||Up to 80 hours continuous radio using (4) AA alkaline batteries|
|Operating Temperature||-4 F to 158 F (-20 to 70 C)|
|Connectors||Sealed connectors may be used for serial communications and wired connection to an EDxtreme dynamometer|
|RS-232 Communication||Print or extract data easily. Continuous output can drive a scoreboard. Configurable poll character.|
|Included with Remote:||Carry case and batteries|
|Shipping Dimensions||18 x 12 x 8 Inches|
|Accessories||Rubberized case protector sleeve, Remote wall mount bracket. Serial and remote cable assemblies|
- Remote Communicator for EDXtreme
