Dillon Dynamometers Models

The Crosby Straightpoint Radiolink Plus Wireless Dynamometer Tension Load Cell is designed for weighing and dynamic load monitoring in a wide range of applications. It is constructed of high-quality aircraft grade aluminum and features an advanced internal design structure. The design not only provides an unrivaled strength to weight ratio but also allows the use of a separate internal sealed enclosure providing the load cell's electronic components with IP67 environmental protection even with the battery cover plate missing, making this industry leading dynamometer even more suitable for use in the harshest environments. Featuring industry leading wireless technology and range, the versatile Radiolink plus has an update rate of 3Hz and can be easily configured to run at industry leading speeds of up to 200Hz. Data is transmitted wirelessly utilizing the latest in IEEE 802.15.4 (2.4 GHz) technology providing safe, high integrity, error free transmission of both static weight and dynamic load to a wireless handheld controller. Designed for measurement of both Static and Dynamic Loads the Radiolink Plus can also be used in combination with our range of high speed wireless data logging software allowing for simultaneous control, display and real time data logging of up to 100 Straightpoint telemetry Load Cells.

Please click on the links below for additional information on the models available for this product:

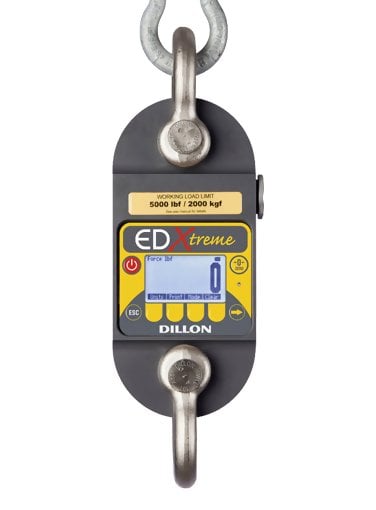

The "Red" EDXtreme Dillon Dynamometer is an example of trademark precision and rugged construction of dynanometers. Its highly refined design draws on the inherent strengths of premium-grade materials to achieve a 5:1 minimum factor of safety. While the EDxtreme Dillon Dynamometers may be configured for something as simple as a digital hanging scale, it offers a higher level of intelligence. With user-defined functions and sophisticated communication options, the EDxtreme readily adapts to multi-tasking operations or multi-link systems capable of monitoring a series of critical stress points from a single locations - it is the definition of application versatility. Building a precision instrument that can survive real-world punishment requires masterful engineering. This is where Dillon's experience shines through. The engineers assigned to the EDxtreme drew on a depth of industrial application knowledge and conducted exhaustive materials testing to achieve the highest structural integrity.

Please click on the links below for additional information on the models available for this product:

The Dillon AP Mechanical Dynamometer is a precision instrument that exhibits limitless versatility as a tension, traction and weight measuring instrument. The core of the device is a steel flexing beam. The enclosure is a heavy aluminum alloy case with baked on protective finish. The dial face is sealed and cushioned with a rubber gasket. Dillon AP Mechanical Dynamometer is available in capacities from 500 to 100,000 pounds, 200 to 50,000 kilograms, 2,000 to 500,000 Newtons.

Please click on the links below for additional information on the models available for this product:

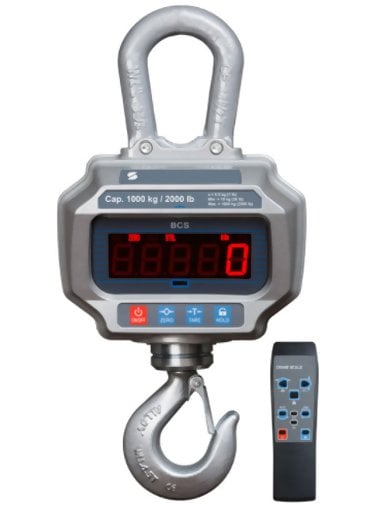

The BCS digital crane scale is a precision scale for a wide range of industrial weighing applications. The BCS is available in 3 ranges with capacities up to 10,000 lb / 5,000 kg. It features a swivel hook for easy and secure connections and an elongated upper shackle with space to accept large hooks. A large 1.4" (35mm) ultra-bright LCD display makes the BCS easy to read from far away. An optional remote control allows the operator to reset and change operating modes adding convenience and safety.

Please click on the links below for additional information on the models available for this product:

The Dillon EDjunior dynamometer is designed to measure inline force / tension in a wide range of industrial applications. The backlit displays shows real-time and peak forces in lbf, kgf and Newtons measuring units. The EDjunior dillon dynamometer is a precision instrument that gets straight to the point - apply a load; take a reading. Its Spartan design is a direct response to industries that have wanted an extremely well-built instrument that could be relied upon for simple, yet critical measurements of weight and force. The EDjunior Dillon dynamometerprovides peak detection as well as sustained load readings. Selectable units of measure include lbf, kgf and Newtons. The load element design and strain gauges chosen for the Dillon EDjunior produce an accuracy of 0.2%(full scale). This level of precision offers flexibility for use in a broad range of applications. Readings are displayed with a resolution of 1 part in 1000 to ensure the level of readability required of critical lifting applications. Heavy cumbersome tools make tough jobs even harder. Through the use of aircraft quality materials, we have made the Dillon EDjunior Dynamometer an easy-to-position, highly mobile instrument with exceptional strength. The EDjunior offer an impressive factor of safety at all capacities. Power is supplied by two C-cell batteries that are easily accessible through a side loading port. Battery replacement, however, is a rare event. With the Dillon EDjunior's low power consumption, typical battery life is over 400 hours.

Please click on the links below for additional information on the models available for this product:

The EDX-COMM Remote Communicator is used toremotely view and control one or several EDxtreme instruments simultaneously. It connects by wire to the connector on the back of the EDxtreme. If equipped with radio, the remote cable can be eliminated (radio options must be installed in both the EDxtreme and Communicator). Information is easily sent to computer from the Communicator.

Please click on the links below for additional information on the models available for this product:

The Straighpoint SW-HHP Hand-Held Display is our rugged and versatile digital handheld display with a broad range of features and suitable for all Straightpoint loadcell products.

Please click on the links below for additional information on the models available for this product:

The Straightpoint ATEX / Ex IECEx Radiolink Plus Wireless Dynamometer Tension Loadcell is approved to Ex ia II C T4 Ga for use in zone 0,1 & 2 hazardous areas. This intrinsically safe version of the bestselling Radiolink plus is capable of both weighing and dynamic load monitoring in hazardous environments such as on and offshore oil, gas and chemical industries. Available from stock in capacities from 1t to 300t, constructed from high-quality aircraft-grade aluminium and featuring an advanced internal design structure.Paired with the SP Ex Handheld you can read up to four SP Ex load cells simultaneously allowing the operator to monitor a multi pick point lift from a single handheld at safe distances of up to 500m/1640ft with the added benefits of on-screen overload and calibration due warnings.

Please click on the links below for additional information on the models available for this product:

The Straightpoint Bluelink Bluetooth Dynamometer is designed to replace outdated mechanical models. With a 6.5 tonne / 14,300lb (6500kg) capacity, the BlueLink Dynamometer is the latest SP product to feature Bluetooth wireless technology. The long-range Bluetooth signal connects to any iOS or Android device that has our free HHP app installed, providing the operator with a wireless range of up to 328ft / 100m. This allows them to stand in a safe position away from the load, with no requirement to read directly from the dynamometer. The app will also allow the operator to log data versus time or on events such as over or underload. An adjustable alarm will alert the operator on their smartphone if any overload is occurring. Rigged using industry-standard shackles such as Crosby G2130, the BlueLink has been designed to minimize headroom (6.14 or 156mm from eye to eye). With a safety factor of over 500%, its compact lightweight design does not sacrifice on strength. Constructed from high-quality aerospace-grade aluminum, which is then hard-anodized, it features an advanced internal design structure. This design provides the product with an unrivaled strength to weight ratio. The use of a separate internal sealed enclosure administers the load cell's electronic components with IP67 or NEMA6 environmental protection, even with the battery cover plate missing. All these features make it an industry-leading compact dynamometer, even more suitable for use in the harshest industrial or leisure environments.

Please click on the links below for additional information on the models available for this product:

The Straightpoint CableSafe Rope Tension Meter is the continued evolution of SPs running line tensiometers. Compatible with a wide range of rope and electrical cable diameters 4-30mm. When using a capstan winch to unwind electrical cable from a reel/spool, you will be able to integrate the CableSafe within this setup to ensure that it is being pulled at a safe tension level. This helps the line maintain its transmissions capability, prevent it from becoming a fire hazard risk, and it also stops the need for furthering work in order to remove and replace it. The contractor is gifted with decreased liability and dramatically increased peace of mind.

Please click on the links below for additional information on the models available for this product:

The Straightpoint ChainSafe Chain Load Monitoring Bluetooth Tension Load Cell is a Bluetooth wireless tension load cell capable of load monitoring of capacities up to 4te. Specifically designed for use along the length of the chain with an array of The Crosby Group chain fittings for applications where chain slings, chain lashing and tie-downs are used in industries such as transportation and construction to secure loads and precious cargo.

Please click on the links below for additional information on the models available for this product:

The StraightPoint Crosby Shackles for RLP, CP, LLP and WLP Dynamometers is optionally available for use with our complete line of Dynamometers including the Radiolink Plus, Compound Plus, Loadlink Plus, and Wirelink Plus. They are offered in a wide range of capacities from 3.25 Ton (for Dynamometers rated for 1T or 2.5T capacity) up to 600 Ton (For Dynamometers rated up to 500T). Typically, a set of two shackles would be required for use on any one Dynamometer. Refer to the product listing below to help select the suitable set of shackles.

Please click on the links below for additional information on the models available for this product:

The StraightPoint Handheld Plus Wireless and Wired Load Cell Instrumentation is a rugged and versatile digital handheld display with a broad range of features and suitable for all Straightpoint load cell products. At the heart of the ergonomically designed Handheld plus is a powerful PCB providing industry leading features such as user selectable units of measure (tonnes, lbs, kg and kN), programmable audible overload alarm (HHP & SW-HHP), peak hold, pre-set tare and a user resettable (HHP & SW-HHP) overload counter.

Please click on the links below for additional information on the models available for this product:

The StraightPoint INSIGHT Software is supplied with an SW-D USB wireless dongle, allows connection of up to 126 Straightpoint wireless load cells simultaneously onto any Windows tablet or laptop.

Please click on the links below for additional information on the models available for this product:

The StraightPoint LBP Compression Load Cell Loadblock Plus is a low capacity, self-indicating compression loadcell, used in many testing and load monitoring applications worldwide. The integral display eliminates the need for a separate display or cable assemble that can be easily damaged. Applications include the measurement of loads associated with the testing of hydraulic presses, cylinders or jacks. This latest version of our Loadblock has advanced features and benefits providing solutions for todays complicated load test and force monitoring needs. Features include full function push button controls for tare, units of measure (lbs, kg, kN, and tonnes), peak hold, pre-set tare, audible set-point alarm and an overload counter. This crucial overload alarm counter is a requirement for many safety and quality control departments as it keeps track of overload events allowing the load cell in question to be removed from service immediately following a calibration voiding overload event. The load cell in question can then be sent out for proper testing and if necessary, recalibration before re-entering service. The advanced microprocessor based electronics provide the Loadblock Plus with high speed read rates (500 / sec), extreme resistance to industrial level noise and unprecedented stability.

Please click on the links below for additional information on the models available for this product:

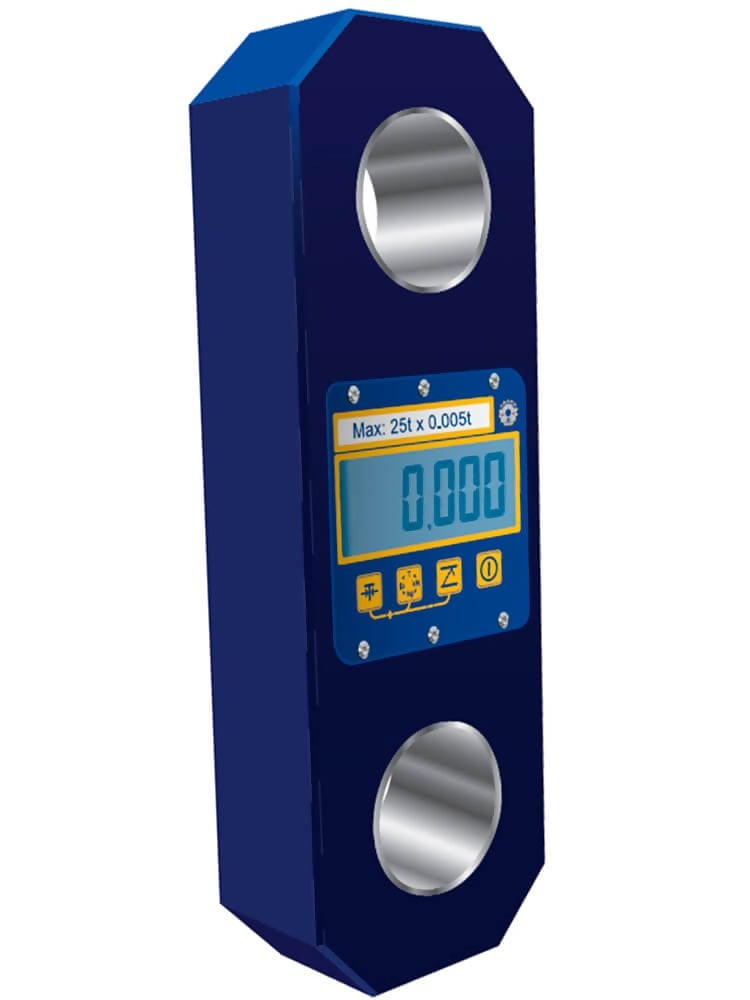

The Straightpoint LoadLink Plus Digital Dynamometer Tension Loadcell is designed for weighing and dynamic load monitoring in a wide range of applications. It has been in production and supplied globally to the lifting and rigging industry since 1979. The Loadlink plus has an easy to read LCD display and push button operation for a host of features demanded by operators worldwide.

Please click on the links below for additional information on the models available for this product:

The StraightPoint LMP Load Sensor Cabled or Wireless Standard Loadpin is range of Loadpins (LMPs) or shear pins are designed for use in applications where an end of line load cell cannot be used or when an integrated solution is required in applications such as pulley or sheave axles, moorings, supports, winches or support blocks.

Please click on the links below for additional information on the models available for this product:

The StraightPoint MWP Compact Small Crane Scale Mini Weigher Plus is small and compact mini crane weigher scale will suit most lifting applications. Available in capacities from 100kg to 5t. Worldwide, its Straightpoints most popular product and has been manufactured since 1987. The Miniweigher plus crane scale offers robust construction, high accuracy, compact size and extreme portability. Utilised by utility companies on every continent, the Miniweigher plus crane scale is quite often mounted between a winch and a tripod, allowing the load monitoring and safe lowering and raising of equipment and personnel, and has proven itself to be an indispensable tool for underground sewer, water, gas, and utility vault access.

Please click on the links below for additional information on the models available for this product:

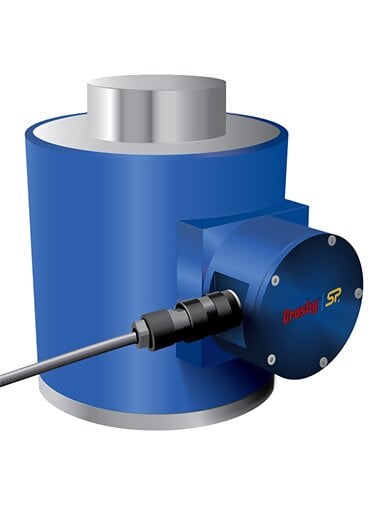

The StraightPoint NI-Compression Wired Compression Load Cell is available in ranges from 5te to 1000te. Straightpoint compression load cells are manufactured to the same stringent standards as all Straightpoint products. The bodies are machined from high grade stainless steel, offering excellent strength and anti-corrosion properties. Compression load cells can be supplied with optional loadcaps to protect objects being tested. The compact lightweight design provides ease of use and superior portability, allowing Straightpoint compression load cells to be used in a broad range of industries including mining, energy, defence, heavy rigging, shipping, and general transportation sectors.

Please click on the links below for additional information on the models available for this product:

The Straightpoint RadioLink Compound Plus is designed for weighing and dynamic load monitoring in a wide range of applications. All Compound Plus Dynamometers are supplied with 2.4GHz Wireless Output for connection to the optional battery-powered SW-HHP Handheld Display or INSIGHT Multiple Wireless Loadcell Software. There is also a version "-BLE" providing a Bluetooth Output for connection to the no-cost HHP App for Apple and Android Phones and Tablets.

Please click on the links below for additional information on the models available for this product:

The StraightPoint S-Beam Load Cell Shear Beam Tension and Compression is a range of stainless steel "S" beam load cells from 100kg to 5t. The Straightpoint "S" Beam range of tension / compression load cells are suitable for smaller Silo, vessel and tank weighing applications or for building into OEM projects, testing machines etc. Hardwired, they are supplied with a 10m/30ft cable and can be connected to the Straightpoint range of accessories such as the Handheld plus. The "S" beam loadcell can be used in both tension or compression and has a threaded hole at each end making it a very flexible solution.

Please click on the links below for additional information on the models available for this product:

The StraightPoint Shackle Load Cells - LoadShackles is available from stock in capacities 3.25t to 400t, and available up to 3000t. The Straightpoint SLB Loadshackle is manufactured from Crosbys industry leading 2130 Carbon and 2140 Alloy Bolt Type Anchor Shackles. The Loadshackle offers reduced overall weight and headroom providing a great fit for low headroom applications.

Please click on the links below for additional information on the models available for this product:

Straightpoint StageSafe Load Cell for Entertainment Rigging - SSDB3T Built-in Wireless is a 3 tonne capacity load cell designed exclusively for the entertainment industry. A matte black finish ensures there are no visual distractions. High accuracy and low headroom make it ideal for a wide range of rigging applications.

Please click on the links below for additional information on the models available for this product:

The Straightpoint TIMH Running Line Tensiometer / Cable Tension Meter / Cable Tension Sensor is a Wireless Running Line Tensiometer or RLTM built with dockside, marine, offshore, towage and salvage applications in mind. It is particularly useful where there is no anchor or dead end on the line to rig a Straightpoint Radiolink or Loadlink digital dynamometer to measure tension force at speeds up to 20m/min or 65ft/min.

Please click on the links below for additional information on the models available for this product:

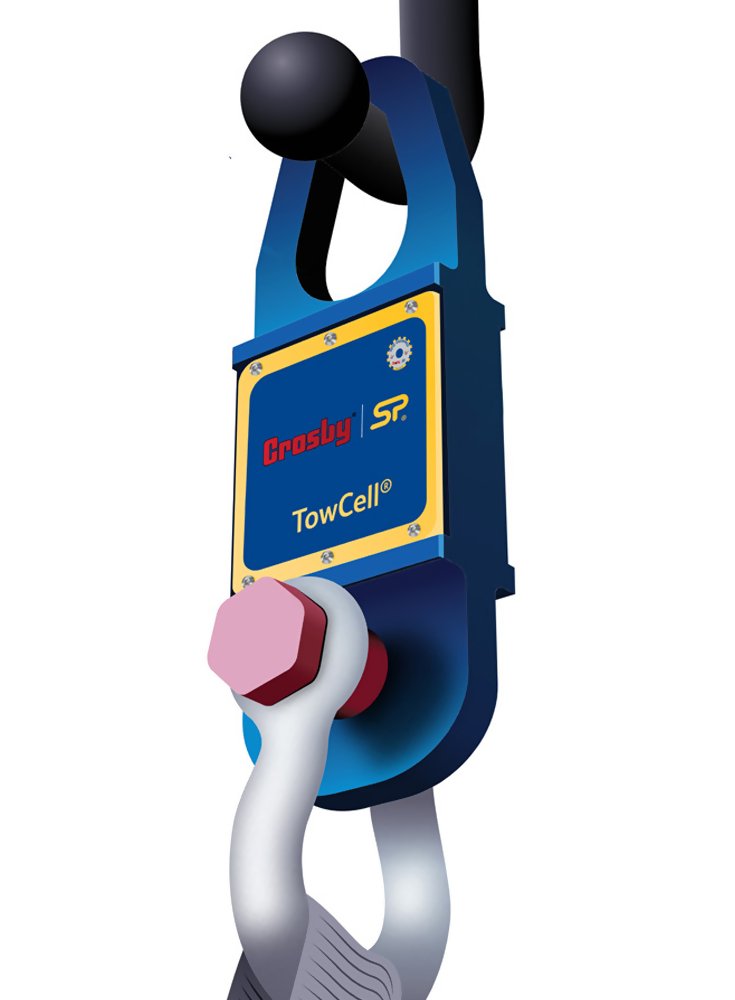

The Straightpoint Towcell wireless load cell is designed to monitor a vehicle's towed load up to 25 kN / 2.8 tonnes. Typical applications include emergency services, salvage, off-road and much more. The Towcell allows for increased safety and the avoidance of costly overloads by providing real-time monitoring of tensile towing forces during recovery, clearance and salvage efforts. The Towcell is rugged, lightweight, compact and can be installed, with ease, onto any tow bar, whether its a standard 52mm or 2 ball or pin assembly and is ready to use in seconds.

Please click on the links below for additional information on the models available for this product:

The Straightpoint WIB Wireless Arborist Impact Block Load Cell is the designed to deliver the best performance in terms of alignment, resistance and appeal. The aesthetic curves of the Impact Block combines beauty, strength and durability to ensure a rope friendly surface. Coupled with wireless dynamic load monitoring electronics and strain gauge technology from Straightpoint and providing real time data to either handheld controller or logging via our INSIGHT software to tablet or laptop, it is easy to see why this is one of the most sought after products in the industry.

Please click on the links below for additional information on the models available for this product:

The StraightPoint WLP WireLink Plus Cabled Tension Load Cell is designed to be rigged with Crosby standard shackles - manufactured from aerospace grade aluminium and utilising an advanced internal design structure this range of non-indicating Load cells are extremely lightweight, easy to handle and are used worldwide in an array of industries for lifting, pulling, proof and structural load testing. Decades of development into this product include many stand out features such as our unique strain gauging method that helps compensate for wire rope torque when the Wirelink is loaded.

Please click on the links below for additional information on the models available for this product:
