Straightpoint WIB6T-BLE Wireless Impact Block, 6 ton (13,227 lbs), Resolution 0.01t/20 lb, Bluetooth Model for use with HHP-APP - 2789310



Price: $ 5,483.00

Straightpoint WIB Wireless Arborist Impact Block Load Cell
Max Rope Diameter: 3/4" (20 mm)
Accuracy of 0.1% full scale with 5:1 Safety Factor

  • WIB6T Capacity: 6 tonnes / 60 kN / 13,227 lbs
  • Max Rope Diameter: 3/4" (20 mm)

The safest choice for the working Arborist. Manufactured in partnership with DMM, the WIB Wireless Impact Block has been designed to deliver the best performance in terms of alignment, resistance, and appeal. The aesthetic curves of the Impact Block combine beauty, strength, and durability to ensure a rope friendly surface. Coupled with wireless dynamic load monitoring electronics and strain gauge technology from Straightpoint and providing real-time data to either a handheld controller or logging via our INSIGHT software to tablet or laptop, it is easy to see why this is one of the most sought after products in the industry.

Two versions of the WIB are available:

  • 2.4GHz Wireless version providing high-speed sampling of 50 Hz (up to 200Hz) for dynamic load monitoring applications and industry-leading wireless range of 1000 m or 3280 ft designed for connection to the SW-HHP Hand-Held Indicator or IMPACT software.
  • Bluetooth output version designed for connection to any smartphone or tablet running our free HHP app on iOS or Android sampling at 3 Hz with transmission ranges of 100m or 328ft.

During development, the Straightpoint Impact Block has gone through a thorough dynamic and static validation testing regime. The end result is a highly functional product with an impressive strength to weight ratio. Coupled with wireless dynamic load monitoring electronics and strain gauge technology from Straightpoint and providing real-time data to either a handheld controller or logging via our INSIGHT software to tablet or laptop, it is easy to see why this is one of the most sought after products in the industry. During development, the Straightpoint Impact Block has gone through a thorough dynamic and static validation testing regime. The end result is a highly functional product with an impressive strength to weight ratio. The end result is a highly functional product with an impressive strength to weight ratio.


line

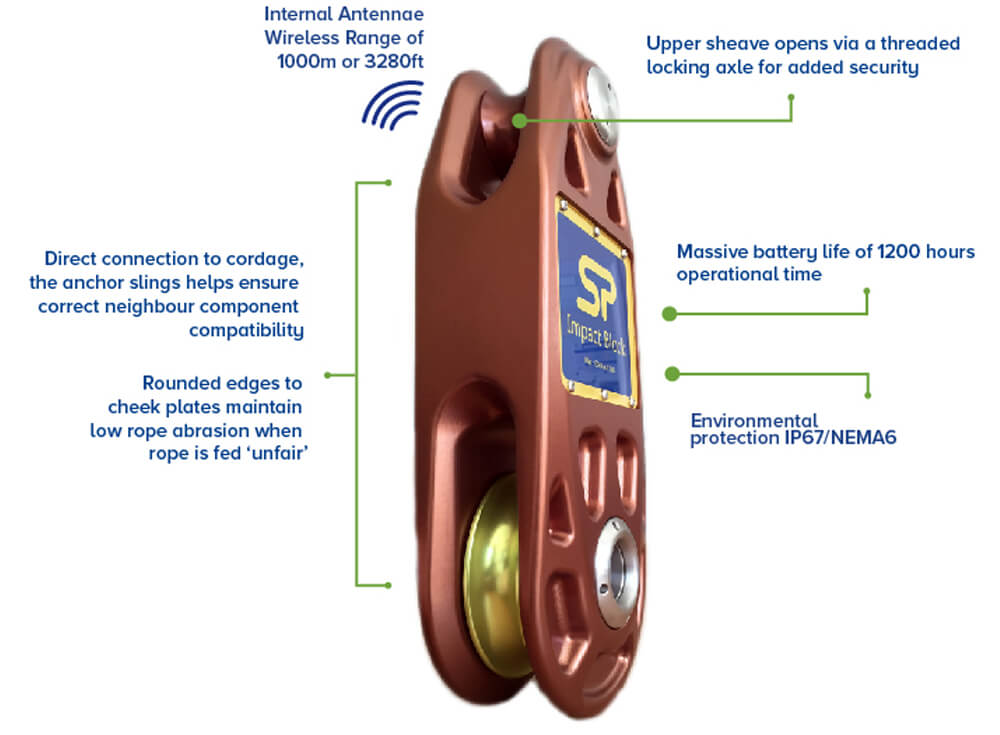

Features
line

  • Accuracy of 0.1% full scale with 5:1 Safety Factor
  • Waterproof for use in all weather conditions, housing protection of IP67 or NEMA6
  • Rounded edges to cheek plates maintain low rope abrasion when rope is fed unfair
  • Upper sheave opens via a threaded locking axle for added security
  • Thrust surfaces increase tolerance to external loading of spindle and anchor pin
  • Direct connection to cordage, the anchor slings helps ensure correct neighbour component compatibility
  • 1000m (3280 ft) wireless range enabling operator to stand at safe distance
  • 2.4GHz Wireless battery life of 1200 hours with 500 Hrs for Bluetooth version
  • Wireless Hand-Held Indicator or data logging software via 2.4 GHz wireless connection - 50 samples/sec
  • Bluetooth version offered for connection to free App on smartphones & tablets - 3 samples/sec
  • Warranty 1-Year (FREE Extension to 2-Years with Product Registration)


line
Specifications
line

Capacity6 tons / 60 kN / 13,227 lbs
Resolution0.01 t / 0.1kN / 20 Lbs
Accuracy0.1% full scale
Safety factor5:1
Battery Type4x AA Alkaline
Battery Life - 2.4Ghz Wireless1200 Hrs, continuous use
Battery Life - Bluetooth500 Hrs, continuous use
Operating Temp-10 to 50 C / 14 to 122 F
Wireless Frequency2.4GHz
Transmission Distance (2.4GHz)1000 meters (3280 ft), line-of-sight
Transmission Distance (Bluetooth)100 meters (328 ft)
Data Sampling Rate (2.4GHz)50Hz (standard) up to 200Hz (optional) for dynamic load monitoring applications
Data Sampling Rate (Bluetooth)3Hz (= 3 samples/second)
Environmental ProtectionIP67 or NEMA6
Max Rope Diameter20 mm (3/4")
Weight6kg / 13 lb
Dimensions13.7 x 5.16 x 3.5 (348 x 131 x 89 mm) download detailed dimensional drawing below


line
Downloads
line

Straightpoint WIB Wireless Arborist Impact Block Load Cell - Data Sheet
Straightpoint WIB Wireless Arborist Impact Block Load Cell - Instruction Manual

Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
Straightpoint WIB6T-BLE Wireless Impact Block, 6 ton (13,227 lbs), Resolution 0.01t/20 lb, Bluetooth Model for use with HHP-APP - 2789310 $5,483.00
