Accuracy of 0.1% Full Scale
Environmentally sealed to IP67/NEMA6
Machined from high grade stainless steel with 3:1 Safety Factor

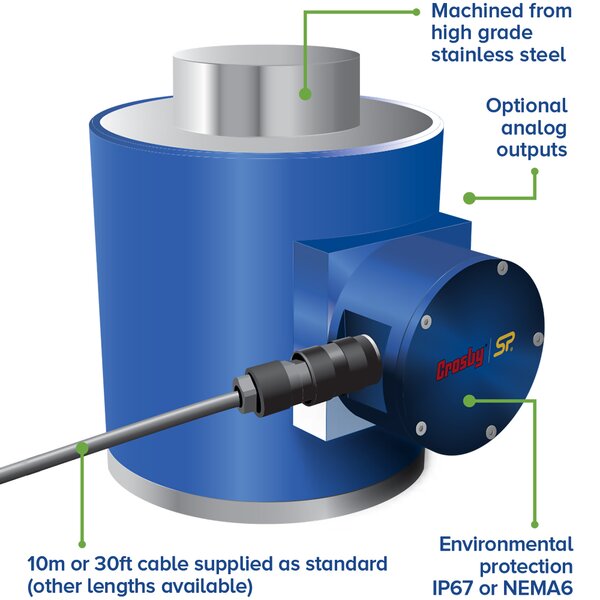

The StraightPoint NI-Compression Wired Compression Load Cell is available in ranges from 5te to 1000te. Straightpoint compression load cells are manufactured to the same stringent standards as all Straightpoint products. The bodies are machined from high grade stainless steel, offering excellent strength and anti-corrosion properties. Compression load cells can be supplied with optional loadcaps to protect objects being tested.
The compact lightweight design provides ease of use and superior portability, allowing Straightpoint compression load cells to be used in a broad range of industries including mining, energy, defence, heavy rigging, shipping, and general transportation sectors.
Utilising the same advanced microprocessor based electronics as all Straightpoint products, Straightpoints compression load cells benefit from high sampling rates, extreme resistance to industrial level noise and unprecedented stability. This high stability gives this product over 5,000 divisions and the highest standard resolution of any high capacity compression load cell on the market today. Like all Straightpoint products, Straightpoint compression load cells offer robust construction, advanced electronics, industry leading resolution and accuracy.
Kit Contents
- Straightpoint NI Compression Wired Compression Load Cell
- 10 Metres / 30 Feet Cable
- Proof test certificate
- Operator Manual
- Carry / Storage Case
- Warranty 1-Year (FREE Extension to 2-Years with Product Registration)
- Complies with ASME B30.26
- Design validated by F.E.A.
|  |
Features
- Compact size
- Environmentally sealed to IP67/NEMA6
- Optional analogue outputs
- Stainless steel element
| - High accuracy
- Lightweight
- Unrivalled resolution
- Custom versions available
|
Applications
- Pre-lift weight and centre of gravity calculations for large plant and equipment
- Hydraulic and Pneumatic Press Force Verification and Calibration
- Structural Weighing and Center of Gravity Calculation
- Bridge Construction and Performance Load Monitoring
- Tank/Silo/Hopper Measurement
- Vehicle Weighing
- Large Scale Industrial Tank/Silo/ Hopper Filling and Dosing Measurement
- Structural Testing Research and Development
- Aircraft Weighing
- Material Force Testing / Concrete Crush Testing
- Wind Tower Load Monitoring
- Heavy Construction Pile driving
- Used alongside Self-propelled modular trailer (SPMT) when moving heavy loads.
Specifications
| Accuracy | +/- 0.1% of Full Scale |
| Protection | NEMA 6 / IP67 |
| Safety Factor | 3:1 |
| Housing Material | Stainless Steel |
| Outputs | Connection to HHP Indicator or External Amplifier (Analog Outputs) |
| Operating Temp | 14 to 122F / -10 to +50 C |
| Models Ranges | 5 Ton (11,000 Lbs) up to 1000 Ton (2,200,000 Lbs) |
| Battery Type | Loadcell 4x AA Alkaline |
Comparison Chart

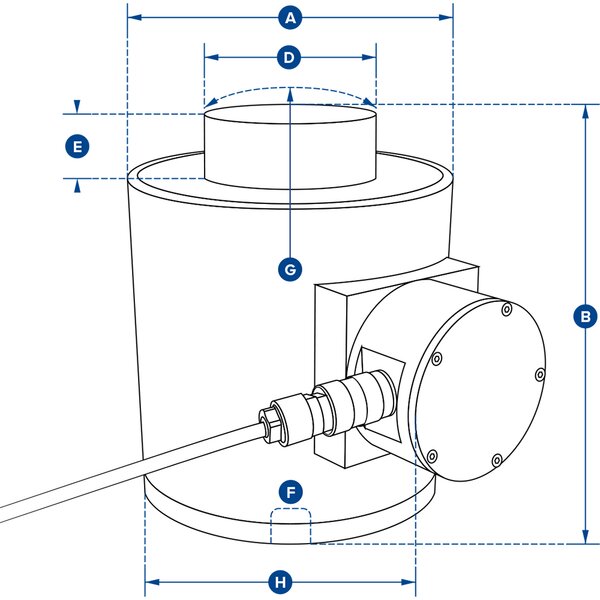

Dimensions
Downloads
